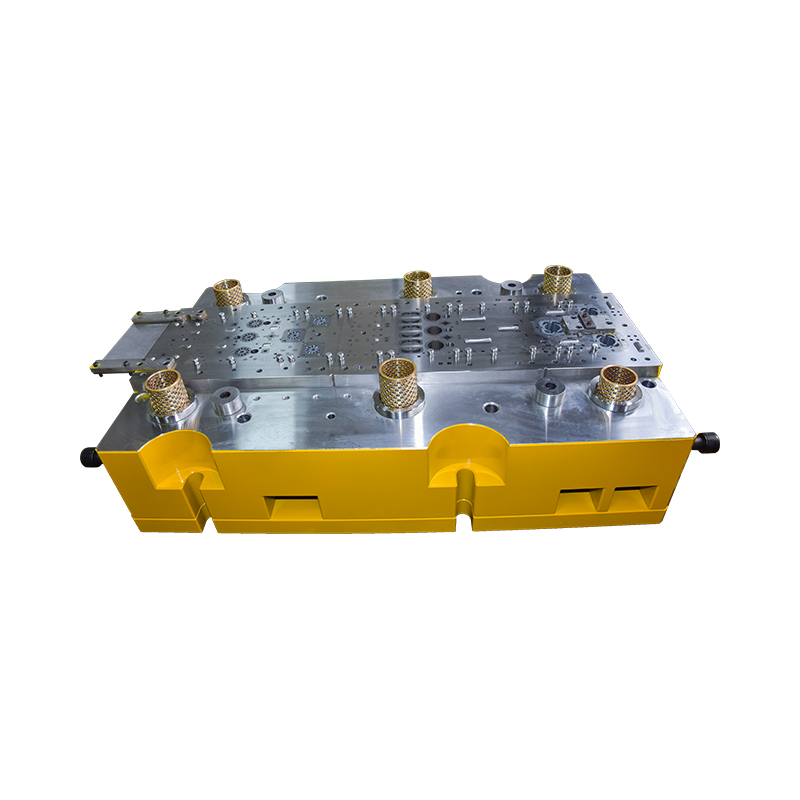

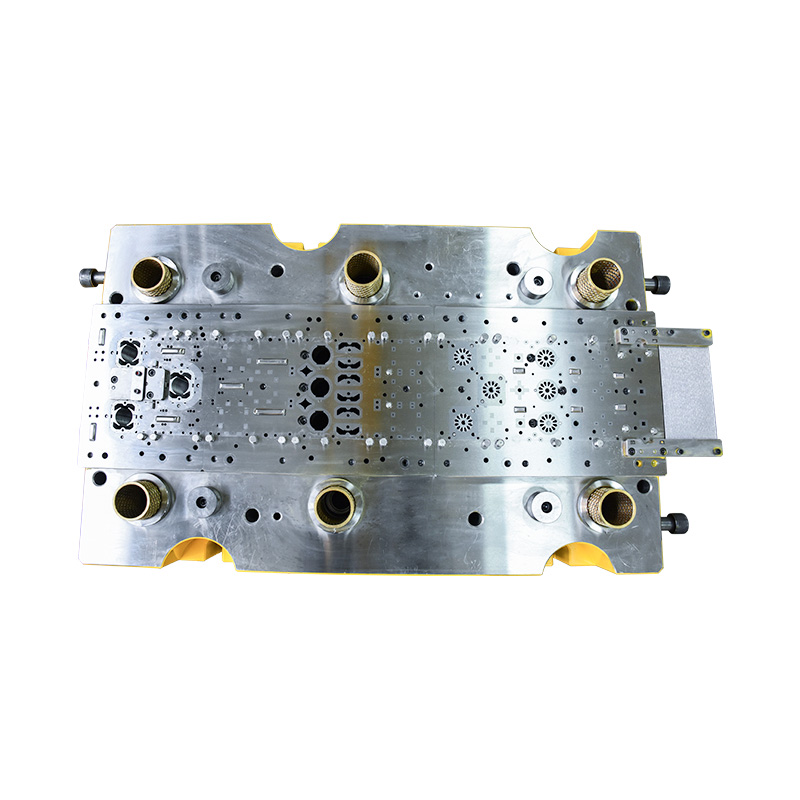

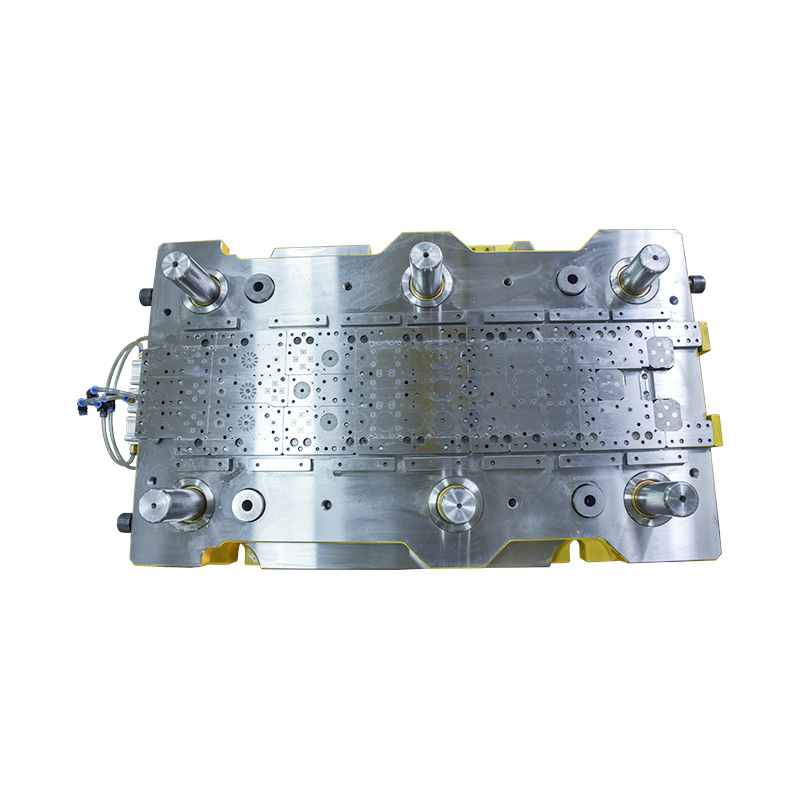

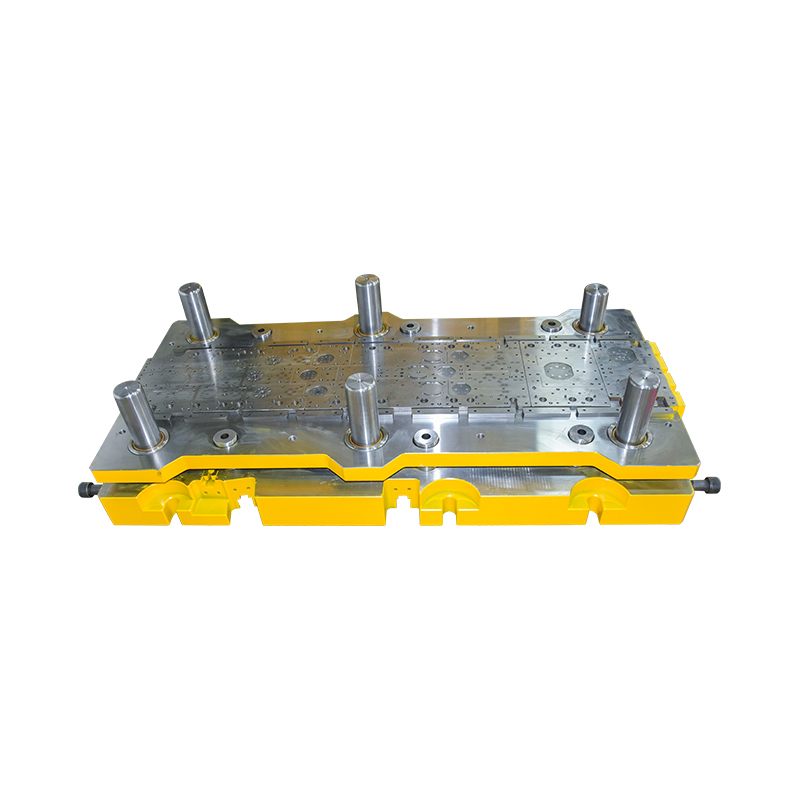

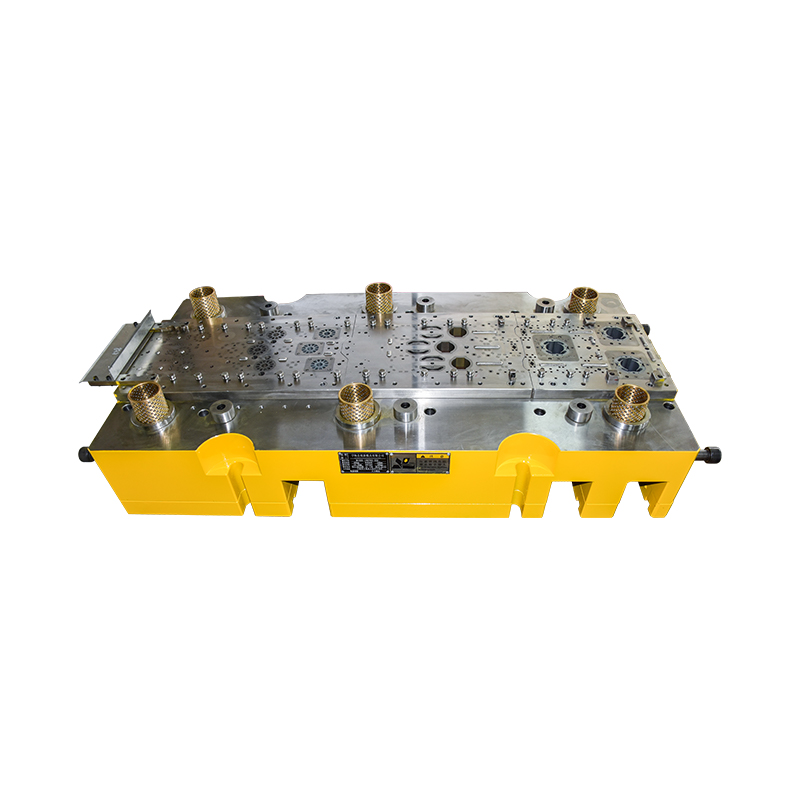

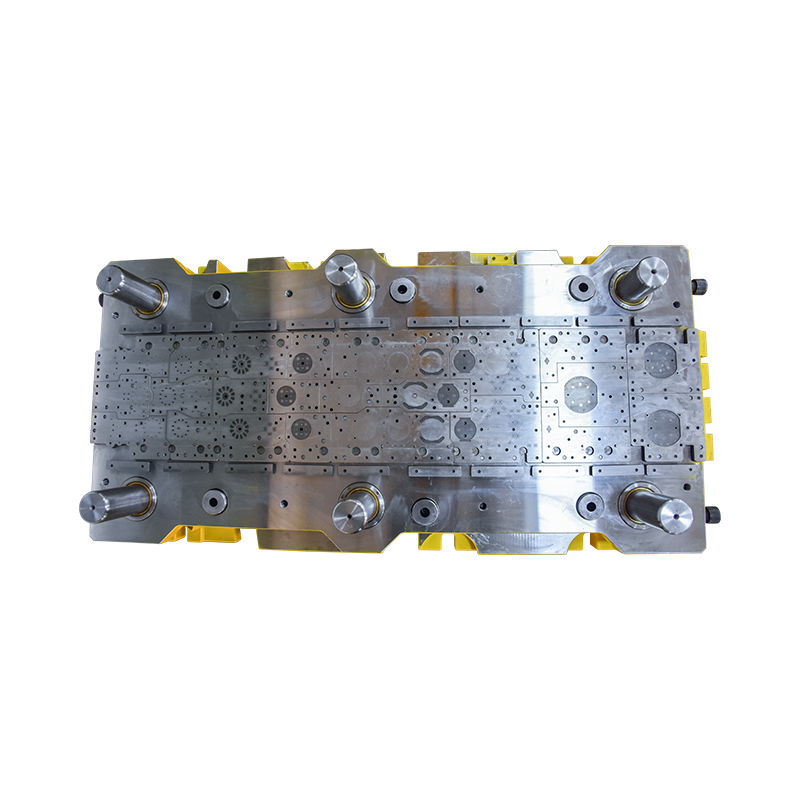

What is Series motor progressive die
A series motor progressive die, also known as a progressive stamping die, is a type of tooling used in metal stamping operations to produce a series of parts in a sequential manner. It is commonly used in high-volume manufacturing processes to efficiently produce parts with complex shapes.
The progressive die consists of multiple stations or stages, each performing a specific operation on the metal strip as it progresses through the die. The metal strip is fed into the die, and with each stroke of the press, it advances to the next station, where a new operation is performed.
In the case of a series motor progressive die, it is designed specifically for motor laminations. Motor laminations are thin metal sheets with precise shapes that are stacked together to form the core of an electric motor. The progressive die is used to cut, punch, and shape the laminations according to the required design.
The
series motor progressive die typically includes stations for blanking (cutting the metal strip into individual pieces), piercing (creating holes or slots), forming (bending or shaping), and trimming (removing excess material). The die is carefully engineered to ensure accurate and consistent production of motor laminations.
By utilizing a series of progressive operations within a single die, manufacturers can achieve high production rates, reduce material waste, and maintain tight tolerances. The automation of the process helps improve efficiency and lowers labor costs compared to other methods of manufacturing motor laminations.
Overall, a series motor progressive die is a specialized tool used in the mass production of motor laminations, enabling efficient and cost-effective manufacturing processes in the electric motor industry.
Efficiency and Precision: The Benefits of Series Motor Progressive Dies
Series motor progressive dies offer several benefits in terms of efficiency and precision in the manufacturing of motor laminations. Here are some key advantages:
1. High Production Efficiency: Progressive dies enable continuous, automated processing of metal strips, resulting in high production rates. The sequential nature of the die allows for multiple operations to be performed in a single stroke of the press. This eliminates the need for manual handling and reduces downtime between operations, leading to increased efficiency and productivity.
2. Material Savings: Progressive dies minimize material waste by tightly nesting the required shapes within the metal strip. The close spacing between parts maximizes material utilization, reducing scrap and optimizing raw material costs. This is particularly beneficial for high-volume production, where even small material savings can have a significant impact.
3. Improved Accuracy and Consistency: Series motor progressive dies are designed with precision in mind. The die's tooling is carefully engineered to ensure accurate cutting, forming, and shaping of the metal strip. As a result, the produced motor laminations exhibit consistent dimensions, tight tolerances, and uniform quality across the entire production run. This consistency is crucial for the proper functioning and performance of electric motors.
4. Enhanced Part Complexity: Progressive dies enable the production of motor laminations with intricate and complex shapes. The multiple stations in the die allow for a variety of operations, such as cutting, punching, bending, and forming, to be performed in a controlled and sequential manner. This versatility allows manufacturers to meet the requirements of diverse motor designs, including customized shapes and configurations.
5. Reduced Labor Costs: Automation plays a significant role in series motor progressive die operations. The automated feeding, advancing, and ejection of the metal strip minimize the need for manual labor, leading to cost savings in terms of labor hours and associated expenses. By streamlining the production process, manufacturers can allocate their workforce to other value-added tasks.
6. Faster Time-to-Market: With its efficient production capabilities, progressive die stamping helps accelerate the time-to-market for motor laminations. The high-speed, automated process enables rapid manufacturing cycles, allowing manufacturers to meet tight production deadlines and respond quickly to market demands.
In summary, series motor progressive dies provide substantial benefits, including improved production efficiency, material savings, precision, complexity handling, labor cost reduction, and faster time-to-market. These advantages make progressive die stamping a preferred method for high-volume manufacturing of motor laminations in the electric motor industry.
Maximizing Output and Minimizing Cost with Series Motor Progressive Dies
Series motor progressive dies offer several strategies for maximizing output and minimizing costs in the manufacturing of motor laminations. Here are some key considerations:
1. Optimal Die Design: The design of the progressive die is crucial for maximizing output and minimizing costs. A well-engineered die ensures efficient material utilization, minimizes scrap, and reduces the number of operations required. Careful consideration should be given to the layout of the stations, the sequencing of operations, and the nesting of parts to optimize production efficiency.
2. High-Speed Presses: Pairing series motor progressive dies with high-speed presses can significantly increase production output. High-speed presses are designed to operate at faster cycling speeds, reducing the cycle time per part. By investing in advanced press technology, manufacturers can achieve higher production rates and maximize the throughput of the progressive die.
3. Material Utilization: Efficient material utilization is essential for cost savings. By carefully nesting the required shapes within the metal strip, manufacturers can minimize scrap and optimize material usage. Computer-aided design (CAD) software can help optimize the nesting process by automatically arranging the parts within the strip to maximize material yield.
4. Tooling and Maintenance: Proper maintenance of the progressive die and associated tooling is crucial for minimizing downtime and ensuring consistent production. Regular inspections, cleaning, and maintenance of the die components can help prevent breakdowns, reduce the risk of quality issues, and optimize the lifespan of the tooling. Well-maintained tooling contributes to consistent output and minimizes costly interruptions in production.
5. Automation and Integration: Integrating series motor progressive dies with automation systems further enhances output and reduces costs. Automated material feeding, transfer systems, and ejection mechanisms improve efficiency, reduce manual labor, and minimize the risk of errors. Integration with other manufacturing processes, such as material handling, quality control, and data collection systems, streamlines the overall production workflow and increases productivity.
6. Continuous Process Improvement: Continuous process improvement is key to maximizing output and minimizing costs over time. By analyzing production data, identifying bottlenecks, and implementing process optimization strategies, manufacturers can make incremental improvements in efficiency, quality, and cost-effectiveness. Techniques such as lean manufacturing, Six Sigma, and Kaizen can be applied to systematically identify and eliminate waste in the production process.
7. Supplier Collaboration: Collaborating with experienced and reliable suppliers of progressive dies and tooling is essential for maximizing output and minimizing costs. Choosing reputable suppliers who understand the specific requirements of series motor progressive dies ensures the availability of high-quality tooling, timely support, and ongoing optimization opportunities.
By implementing these strategies, manufacturers can maximize the output of series motor progressive dies while minimizing costs, resulting in improved profitability, shorter production cycles, and increased competitiveness in the market.
