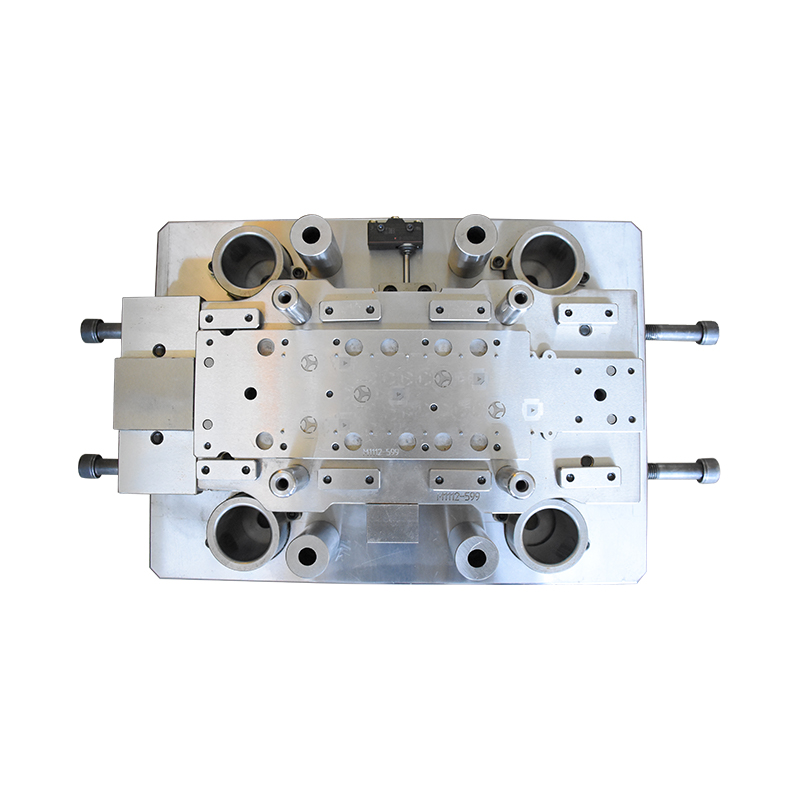

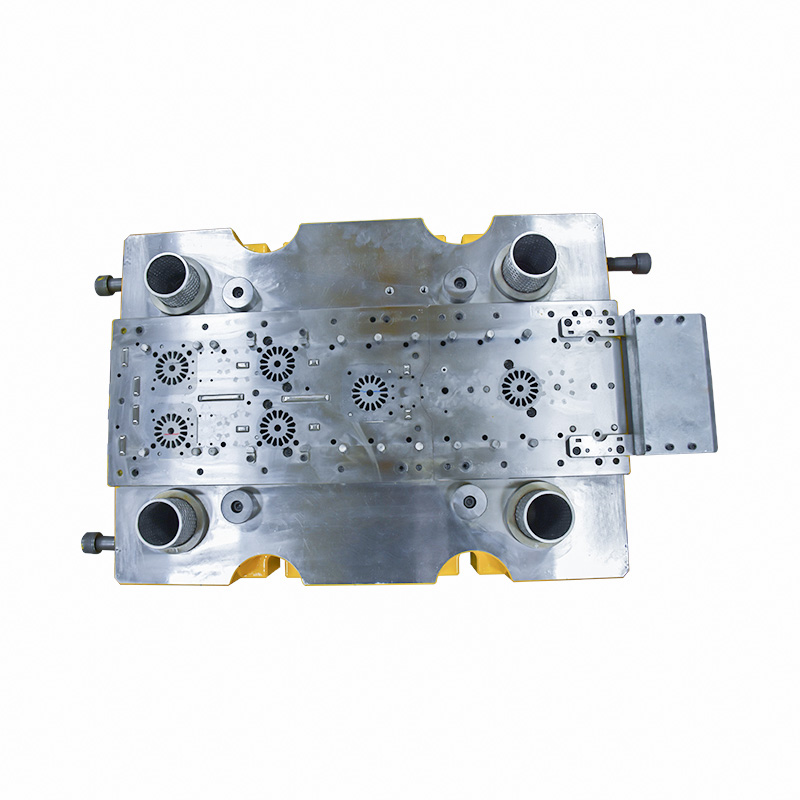

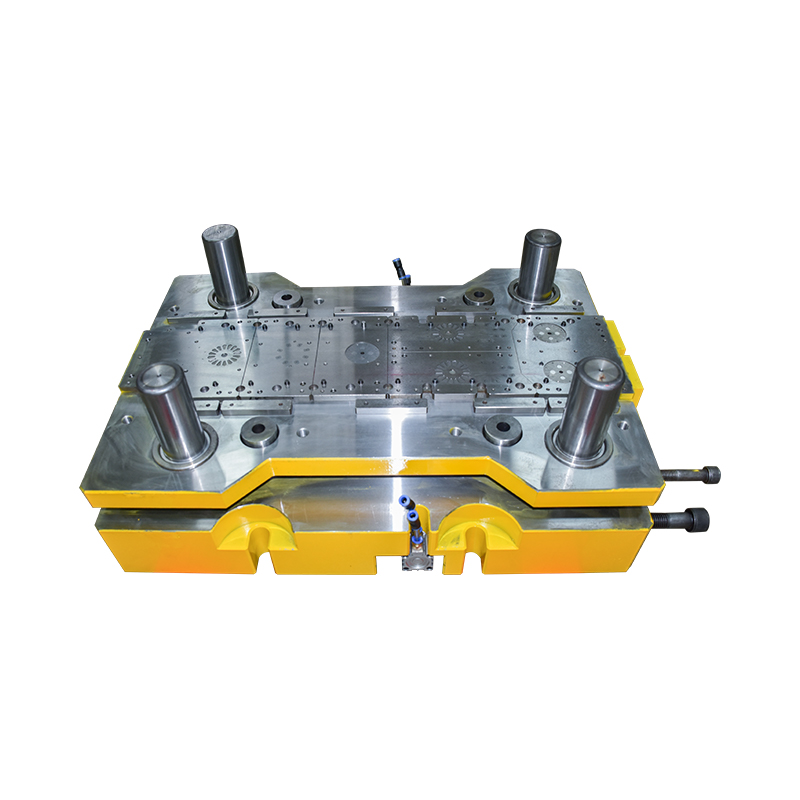

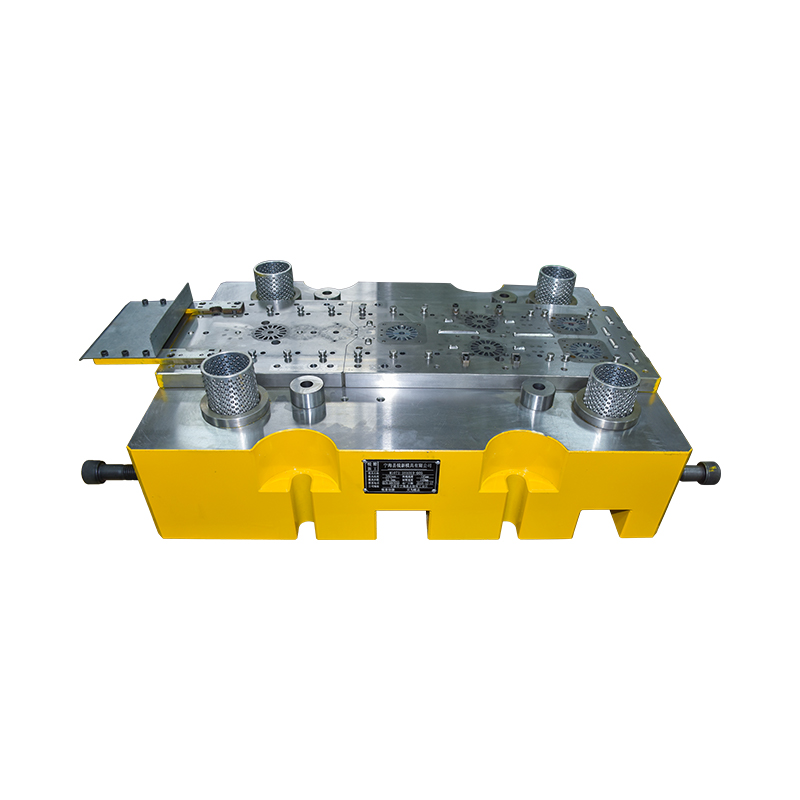

What is Automotive micromotor progressive die
An
automotive micromotor progressive die refers to a specific type of tooling used in the manufacturing process of automotive micromotors. Micromotors are small electric motors used in various applications within automobiles, such as power windows, windshield wipers, HVAC systems, and seat adjustments.
A progressive die is a specialized tool used in the metal stamping process. It consists of a series of stations or steps, each of which performs a specific operation on the metal sheet as it passes through the die. These operations could include cutting, bending, punching, and shaping the metal.
In the context of automotive micromotors, a progressive die is designed to manufacture the components of the micromotor using a step-by-step approach. It allows for high-volume production with precise control over the dimensions and features of each component. The die is typically customized to meet the specific requirements of the micromotor design.
The progressive die for automotive micromotors may include multiple stages, each stage performing a specific operation. For example, one stage could be responsible for blanking the metal sheets into specific shapes, while the next stage might perform piercing or forming operations. The metal sheet progressively moves through the die, with each stage adding or modifying features until the final component is produced.
Using a progressive die offers several advantages, such as increased productivity, improved accuracy, and reduced labor costs compared to other manufacturing methods. It allows for high-speed, automated production while maintaining tight tolerances and consistent quality.
Overall, an automotive micromotor progressive die is a specialized tool used in the mass production of micromotor components for automotive applications. It enables efficient and precise manufacturing of these small electric motors, contributing to the functionality and performance of various automotive systems.
Enhancing Efficiency in Automotive Micromotor Manufacturing with Progressive Dies
Progressive dies can indeed enhance efficiency in automotive micromotor manufacturing. Progressive dies are specialized tools used in metal stamping processes to efficiently produce high volumes of parts with complex geometries. They consist of a series of integrated stations or dies that perform various operations on a metal strip as it moves through the die set.
Here are several ways in which progressive dies can enhance efficiency in automotive micromotor manufacturing:
1. Increased productivity: Progressive dies allow for continuous, automated production with minimal downtime. The strip of metal moves through the die set, and each station performs a specific operation, such as cutting, punching, bending, or forming. As a result, multiple operations can be performed simultaneously, significantly reducing cycle times and increasing overall productivity.
2. Cost reduction: Progressive dies offer cost advantages by eliminating or minimizing secondary operations. Since multiple operations are performed in a single pass, there is no need for separate tooling or additional handling between operations. This reduces material waste, setup time, labor costs, and the need for extra machinery, leading to cost savings in the manufacturing process.
3. Improved accuracy and repeatability: Progressive dies provide precise control over the manufacturing process, resulting in high accuracy and consistency in part dimensions and tolerances. The die stations are carefully designed and aligned to ensure accurate positioning and forming of the metal strip. This level of precision is particularly crucial in micromotor manufacturing, where small tolerances are required for optimal performance.
4. Enhanced quality control: Progressive dies enable better quality control by integrating inspections and checks within the die set. Inspection stations can be included at various points in the process to verify part dimensions, detect defects, or perform quality checks. By incorporating quality control measures directly into the manufacturing process, potential issues can be identified and resolved earlier, reducing the risk of producing faulty parts.
5. Scalability and adaptability: Progressive dies are highly scalable and adaptable to accommodate different product variations or design changes. By modifying or replacing individual stations within the die set, manufacturers can quickly switch between different part configurations or adapt to design revisions without the need for significant retooling or investment in new equipment. This flexibility enables faster response times to market demands and shortens the time-to-market for new micromotor models.
6. Reduction in material handling: Since progressive dies perform multiple operations in a single pass, there is less need for manual material handling or intermediate steps. This reduces the risk of damage to the parts during handling and minimizes the chances of errors or defects introduced by human intervention. Streamlining the production process through progressive dies can significantly improve overall workflow efficiency.
In summary, progressive dies offer several advantages for enhancing efficiency in automotive micromotor manufacturing. They increase productivity, reduce costs, improve accuracy and repeatability, enable better quality control, provide scalability and adaptability, and minimize material handling. Implementing progressive dies can optimize the manufacturing process, leading to higher throughput, improved product quality, and increased competitiveness in the automotive industry.
Progressive Die Applications in Automotive Micromotor Manufacturing
Progressive dies have several applications in automotive micromotor manufacturing. Here are some specific ways progressive dies are utilized in this industry:
1. Stator and rotor production: Progressive dies are commonly used for manufacturing stators and rotors, which are critical components of micromotors. The dies perform operations such as cutting, punching, and forming to create the intricate shapes and features required for these parts. Progressive dies ensure precise and consistent dimensions, tight tolerances, and high-quality finishes, which are essential for the optimal performance of micromotors.
2. Wire forming and termination: Micromotors often require precise wire forming and termination processes. Progressive dies can be designed to incorporate wire forming stations that bend and shape the wires according to specific configurations. Additionally, termination stations can be included to attach connectors or terminals to the wire ends. By integrating these operations into the progressive die set, manufacturers can streamline the wire processing and ensure accurate and reliable connections.
3. Coil winding: Micromotors often feature coil windings, where copper wire is wound around a core or bobbin. Progressive dies can incorporate stations for automated coil winding, ensuring consistent winding patterns, tension control, and precise placement of the wire. This eliminates the need for manual winding and improves efficiency and quality in the coil production process.
4. Lamination production: Laminations are commonly used in micromotors to minimize energy losses and improve overall performance. Progressive dies can be designed to perform lamination cutting and stacking operations. They can accurately cut and shape laminations from thin magnetic steel sheets, ensuring consistent sizes, shapes, and stacking arrangements. Progressive die technology enables high-speed production of laminations with minimal material waste.
5. Assembly and integration: Progressive dies can also facilitate the assembly and integration of various micromotor components. By incorporating assembly stations within the die set, multiple components can be joined or attached simultaneously. This reduces the need for separate assembly processes and enhances efficiency in the overall manufacturing workflow.
6. Quality control and inspection: Progressive dies can integrate inspection stations for quality control purposes. These stations can include sensors, cameras, or measurement devices to verify part dimensions, detect defects, or perform quality checks during the production process. By incorporating inspection within the die set, manufacturers can identify and address quality issues early on, reducing the production of faulty or substandard micromotors.
In summary, progressive dies find diverse applications in automotive micromotor manufacturing, including stator and rotor production, wire forming and termination, coil winding, lamination production, assembly and integration, as well as quality control and inspection. These applications leverage the benefits of progressive die technology to enhance efficiency, precision, and quality in the production of micromotors used in automotive applications.
